- This is the Bread Board which is used to prepare temporary circuit without soldering for the testing of different circuits.
- The red and green line shown in figure are known are power lines and it is connected internally upto five section as show in figure.
- At the center portion blue line is indicated and thus the group of 5 holes are connected vertically.
- Here blue and yellow section are not connected with each other.
- All the blue lines are also not connected with each other.
Caution:

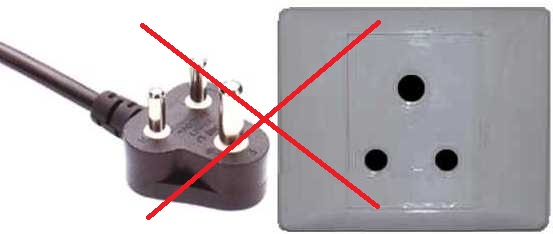

- Never try with the power supply from the 230 supply in the bread board.
- Use the 5V battery of any other 5V DC source.
